1971-72 Cricket Wheel Alignment Guide

1971-72 CRICKET SPECIFICATIONS AND ADJUSTMENTS

TIRE INFLATION
Before attempting to check or adjust front wheel alignments, ensure tires are properly inflated. Manfucturer recommended tire pressure is stenciled on inside of glove box door.

CASTER
Caster is not adjustable. If alignment is not within specification, inspect for damage parts and replace as necessary.

CAMBER
Camber is not adjustable. If alignment is not within specifications, inspect for damaged parts and replace as necessary.

TOE-IN

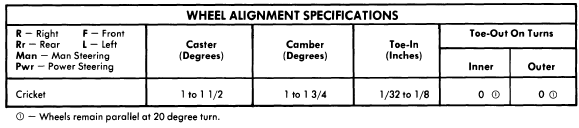

To adjust toe-in, loosen ball joint lock nuts on both tie rods. Loosen screws in rubber boot on inner ends of tie rod and ensure boots are free. Adjust tie rods to specifications (see chart). Tighten lock nut on tie rod end joints and center tie rods. Align boots and tighten clamps until boots are secure.
